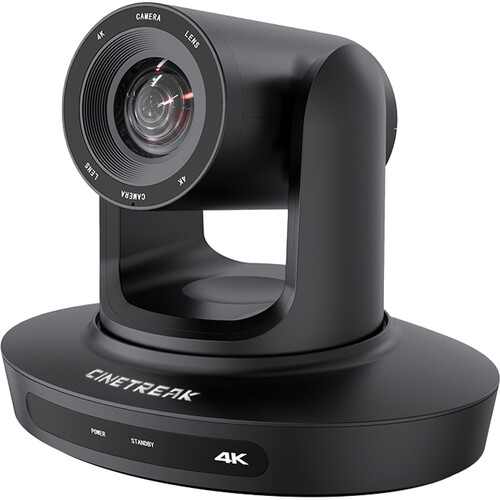

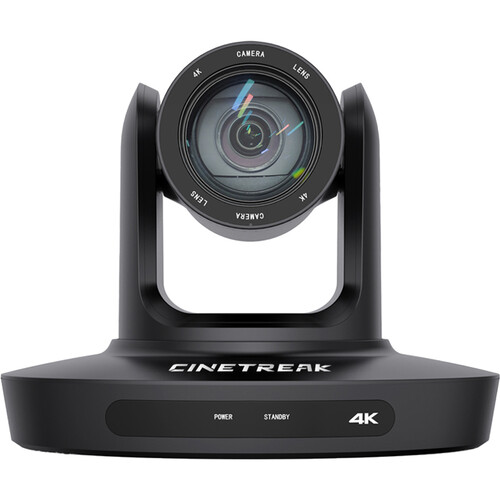

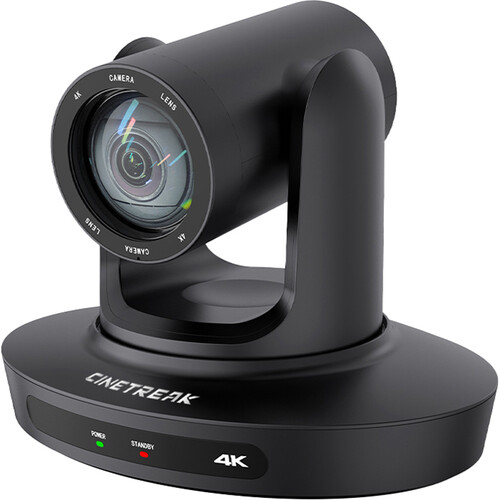

CineTreak CT-P20H USB/HDMI/IP Live Stream 4K PTZ Camera with 20x Optical Zoom

Add PTZ functionality with advanced AI human tracking to your educational, conferencing, or live broadcasting production with the CT-P20H USB/HDMI/IP Live Stream 4K PTZ Camera with 20x Optical Zoom from CineTreak. With its 20x optical zoom lens and a built-in 1/2.8″ HD CMOS Sensor, the CT-PT20H captures video up to UHD 4K30 resolution and outputs simultaneously via its HDMI, USB 3.0, and IP interfaces.

The camera can store up to 200 position presets, and it supports RTMP, RTSP, RTMPS, ONVIF, and SRT streaming protocols as well as RS-232/RS-485 serial connections with ONVIF, VISCA, VISCA over IP, Pelco D, and Pelco-P communication for control. It has a 3.5mm stereo line input and integrates 2D and 3D noise reduction for enhanced imaging. Power is provided via the included 12 VDC power adapter or PoE (Power over Ethernet).

20x Optical Zoom

The 20x optical zoom facilitates efficient close-up and wide-angle shooting with precise focusing for clear and detailed images and accurate color.
Advanced AI Human Tracking
The camera features advanced AI human tracking, intelligently recognizing and automatically tracking subjects and ensuring that the target subject remains centered in the frame, delivering stable and high-quality footage.

Video Interfaces

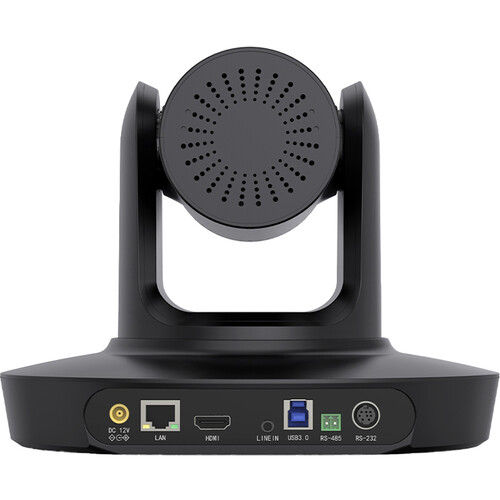

The camera features HDMI, USB 3.0, and IP interfaces and can capture up to UHD 4K30, enabling simultaneous output from each port and a 3.5mm stereo line input. An integrated USB-B port with support for USB 3.0 offers compatibility with UVC 1.1 and UAC 1.0, using YUY2, MJPEG, H.264, and H.265 video coding formats.

Serial Control

A 5-pin Phoenix connector provides compatibility with RS-422 and RS-485 control, while 8-pin DIN input and output connectors enable control with RS-232.
