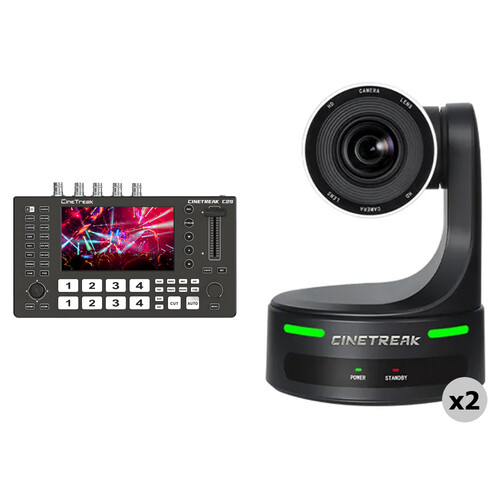

CineTreak CT-PT20 NDI PTZ 2-Camera HDMI/SDI Video Switcher

Add live streaming and switching to your production with the CT-PT20 NDI PTZ 2-Camera Kit with HDMI/SDI Video Switcher put together by B&H. This kit includes a Cinelive C2S video switcher with IP control, streaming, and quad HDMI/quad SDI input, as well as two CT-PT20 PTZ 20x optical zoom streaming cameras with SDI, HDMI, and IP/NDI streaming support.

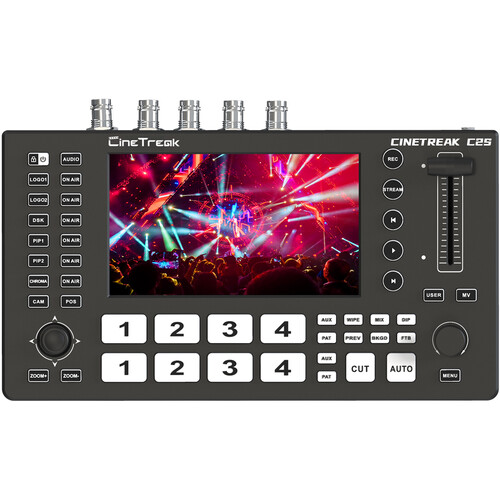

CineTreak C2S Video Switcher

Professional broadcast and content creators can enhance their productions with intuitive multicamera switching using the C2S Video Switcher from CineTreak. The versatile, all-in-one live streaming switcher is equipped with one HDMI AUX output, four HDMI inputs, and four SDI inputs. Boasting powerful recording and playback capabilities, the C2S offers downstreaming capabilities that allow for additional content to be handled from an online streaming code and an SD card. The unit integrates a 5.5” LCD screen and has a customized Meeting mode that allows users to display up to four image windows at the same time.

The switcher records high bit rate Full HD, H.264 files for regular and instantaneous playback, making it ideal for various applications in professional live production. Built-in PTZ camera control provides connectivity for up to four cameras using the VISCA protocol, and landscape and portrait modes allow for quick switching between 16:9 and 9:16 aspect ratios.

Picture-in-Picture and Picture-over-Picture (PiP/PoP) functionality is customizable and facilitates integration with luma and chroma-keying applications for virtual studio environments. The unit can simultaneously stream to two different RTMP destinations, while wireless IP control makes it possible to control the switcher from a computer, smartphone, or iPad. A 12V 2A power adapter and a USB–A 3.0  cable are included.

Downstream/Upstream Support and IP Control

Downstream and upstream functionality allows the use of web video sources like YouTube, Netflix, and Twitch, making the switcher a convenient multimedia platform across regions and distances.

Customized PoP and Dual PiP for Viewing Flexibility

Augmented with customized PoP (Picture-over-Picture) and dual PiP (Picture-in-Picture), the switcher allows you to customize the size and position of each screen, as well as zoom and free cropping to meet a wide range of application requirements across various scenarios.

Powerful DSK Functionality for Rich Visual Effects

Luma- and chroma-keying provide flexibility for subtitle and logo overlays, real-time subtitle display, and rich visual effects to enhance the viewer’s experience.

External USB and SD Card Recording

The SD card slot and USB-A interface allow the direct recording of the program (PGM) output with support for up to 32 Mb/s encoding in MJPEG file format.

RTMP Streaming to Two Destinations

A USB-C port for UVC connectivity allows the switcher to operate in webcam mode, sending video and audio to a computer for live broadcasts to a variety of platforms, including OBS, vMix, Teams, Twitch, YouTube, Skype, VLC, and more. The integrated stream engine enables live streaming to two destinations simultaneously via an Ethernet connection without needing to connect to a computer.

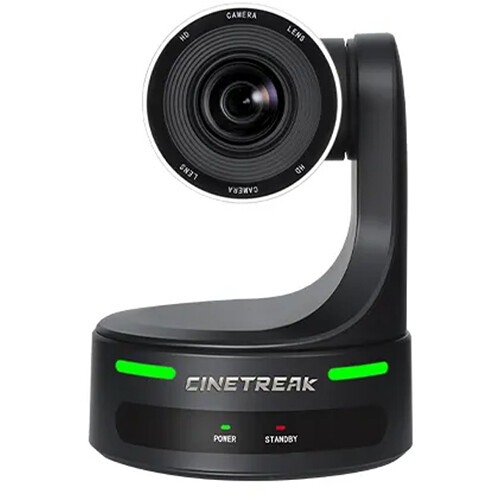

CineTreak CT-PT20 NDI PTZ Camera with 20x Optical Zoom

Add PTZ functionality with advanced AI human tracking to your educational, conferencing, or live broadcasting production arsenal with the CT-PT20 NDI PTZ Camera from CineTreak. Boasting a 20x optical zoom and a built-in Sony 1/2.8″ STARVIS CMOS Sensor, the CT-PT20 NDI captures video up to 1080p60 resolution and outputs simultaneous Full HD 1080p video via its HDMI, SDI, and IP interfaces.

The camera can store up to 200 position presets, and it supports NDI|HX2, RTMP, RTSP, RTMPS, ONVIF, and SRT streaming protocols, as well as ONVIF, VISCA, VISCA over IP, Pelco D, and Pelco-P for control. It has a 3.5mm stereo line input and integrates 2D and 3D noise reduction for enhanced imaging. Power is provided via the included 12 VDC power adapter or PoE (Power over Ethernet).

20x Optical Zoom

The 20x optical zoom facilitates efficient close-up and wide-angle shooting with precise focusing for clear and detailed images and accurate color.

Advanced AI Human Tracking

The camera features advanced AI human tracking, intelligently recognizing and automatically tracking subjects and ensuring that the target subject remains centered in the frame, delivering stable and high-quality footage.

Multiple Video & Control Interfaces

The camera features SDI, HDMI, and IP interfaces, enabling simultaneous Full HD 1080p output from each port and a 3.5mm stereo line input. An integrated USB-B port with support for USB 3.0 offers compatibility with UVC 1.1 and UAC 1.0, using YUY2, MJPEG, H.264, and H.265 video coding formats. A 5-pin Phoenix connector provides compatibility with RS-422 and RS-485 control, while 8-pin DIN input and output connectors enable control with RS-232.
